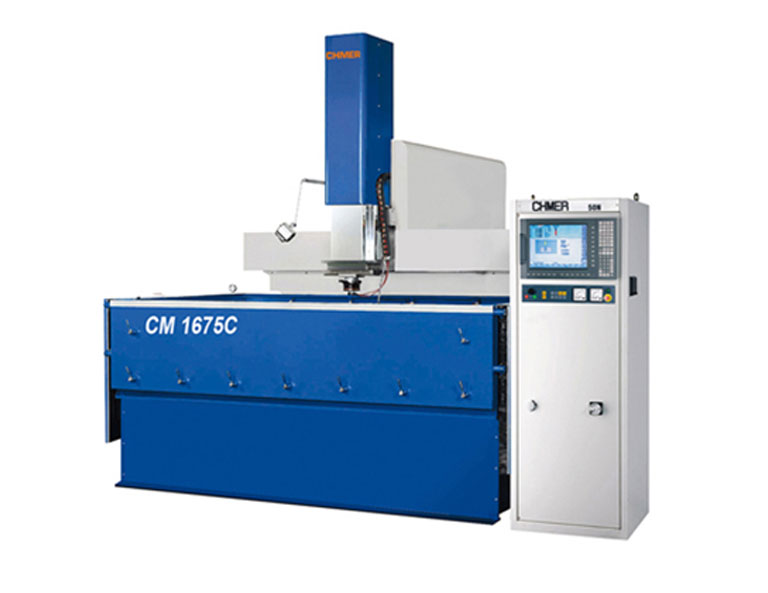

CM1675C

Die Sinker EDM

CNC Series The first ISO 9002 approved & recognized EDM manufacturer in Taiwan. Friendly operation with quick start manual to shorten the operator training hours and increase operator efficiency.

Technical data

X, Y, Z Axis Travel
Max. Size of Workpiece
Max. Work Piece Weight
Outside Dimension (WxDxH)
Machine Weight
1600x700x500mm
2520x1200x540mm
5600kg
3020x3020x3270mm
7400kg

Specification

Model Unit CM1675C
Table size (WxD) mm 1850x850
Table trave (X,Y) mm 1600x700
Ram travel (Z1) mm 500
Distance from RAM platen to work table
platen to work table
mm 700-1200
Max. electrode weight kg 400
Max. workpiece mm 2520x1200x540
Max. workpiece weight kg 5600
Outside dimensions mm 3020x3020x3270
Weight kg 7400

Power Supplier Unit

Model Unit 50N 75N 125N 150N
Max. machining current A 50 75 125 150
Max. power input KVA 4 5 9 10
Max. machining speed mm3/min 350 550 900 1050
Electrode wear rate % 0.2 0.2 0.2 0.2
Best surface roughness μm/Ra 0.25 0.25 0.25 0.25
Outside dimensions mm 620x850x1860 620x850x1860 620x850x1860+450x470x1650 620x850x1860+450x470x1650
Weight kg 180 220 400 440

Dielectric

Model Unit D1675
Volume L 4250
Weight kgs 700

Machine Features

• The machine structure is desgined by advanced CAD system to ensure to deformation-free performance and high accuracy machining.

• Table surface is hardened to high hardness by high frequency heat treatment for maximum wear resistance.

• Precision ball screws on X,Y,Z-axis provide smooth transmission and high accuracy traverse.

• The machine structure is manufactured from high qulity cast iron (FC30), seasoning treated and tempered to relieve stress. THis assured high rigidity, deformation-free and dependable machining accuracy. • The spindle feed on linear motion guides to ensure long term accuracy and durability.

• The machine structure is designed via computer analysis to anti-pull, anti-press and anti-stress, ensure machining accuracy.

Complete Functions Easy Operation

• Closed-loop linear scales feed back on X,Y and Z, axes for precise positioning and cutting accuracy.

Operation Interface

• Friendly operation with quick start manual to shorten the operator training hours and increase operator efficiency.

Features

• Stable, cast construction.

• Dialog control system.

• High precision ballscrews on X,Y,Z.

• Linear guideways X,Y,Z.

• Anti-arc circuitry.

Controls 1

  • Main Control : Industrial Personal Computer
  • 15" TFT (old CRT) + OP
  • DOS Application
  • XYZ DC Servo Motor
  • Standard 3 Axes linear scale
  • Option: C Axis : 3R/EROWA/CHMER
  • Option: Tool Changer
  • XYZ Position : Show on TFT

Controls 2

  • Using CHMER's exclusive CNC and proprietary software, we can provide the user with the latest software updates continually to optimize the machine functions and take advantage of new machining technologies.
  • Using IPC586 CPU board
  • CPU spec's 586 400
  • 15" full color TFT LCD screen
  • All software and hardware are with full authorization.
  • Being the first in Taiwan, CHMER is the first to completely master the total development and build of the High Speed Controller from start to finish internally. In this field, CHMER technology is ahead of the industry. CHMER is totally responsible for the complete production procedures including circuit board design, printing board inspection and software R&D. This gives CHMER customer advantage's of getting exclusive developments quickly and economically

Motion card

  • Input/Out Frequency - 3MHz pps
  • Motor Encoder - 7 channel
  • Selection of pulse Format - A/B Phase;Pulse/Direction;CW/CCw
  • Pulse Number - 1023~32767

CM1675C

Standard

  • Paper Filter x1SET
  • Drill Chuck x1SET
  • Clamping Kit x1SET
  • Electrode holder x1SET
  • Tool Box x1SET
  • Halogen work lamp x1SET
  • Flushing nozzle x2SETS
  • Machine stand x1SET

Option

  • Fire extinguisher
  • Magnetic base
  • Tool changer
  • C axis
  • CE conformity
