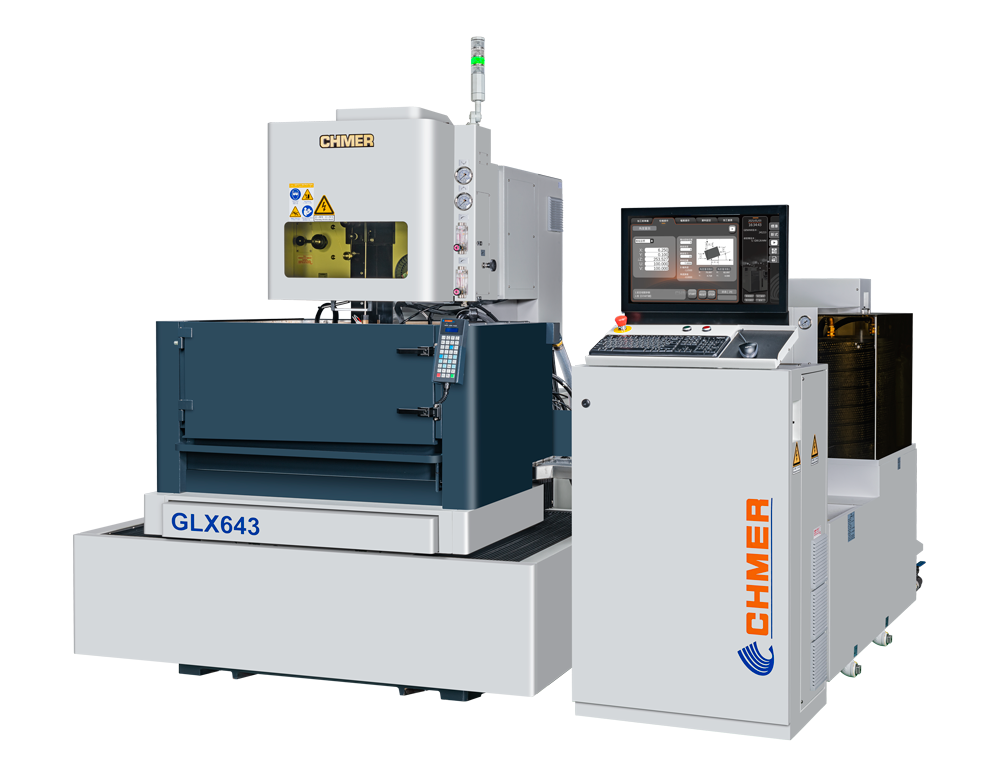

GLX643
Wire Cut EDM
- C-Type: Stable center of gravity during operation; pitch accuracy within ±4μm.
- 15x: Equipped with Linux-based GenOS system; 15x faster processing with high-speed response and multi-axis control.
- 15%: Machining speed increased by 15%, with up to 28% energy savings.
- 19": CHMER-designed hotkey keyboard for intuitive operation and faster function switching.
- 20%: Wire threading and cutting efficiency improved by over 20%.
- 60%: Enhanced UV-axis stroke for more flexible taper cutting.
- Digital: Digital flow control for easy operation and precise water pressure adjustment on upper and lower heads.
X, Y, Z Axis Travel
U, V Axis Travel
Max. Size of Workpiece
Max. Work Piece Weight
Outside Dimension (WxDxH)
Machine Weight
600x400x310mm
120x120mm
910x700x305mm
650kg
2750x2500x2450mm
5335kg
