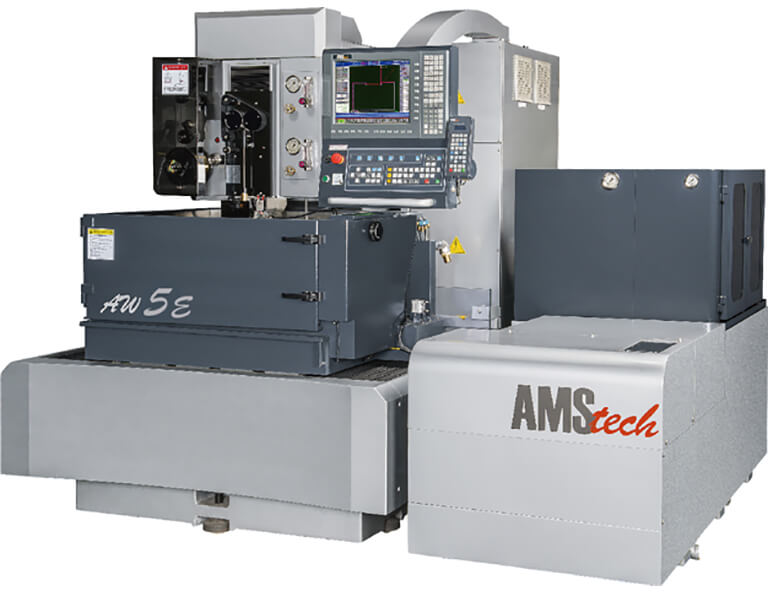

AW5E

Wire Cut EDM

Technical data

X, Y, Z Axis Travel

U, V Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

500x300x260mm

120x120mm

850x550x255mm

600kg

2900x2600x2220mm

4900+900kg

Download PDF Inquiry CHMER

Specification

Model	Unit	AW5E
X, Y Axis Travel	mm	500x300
U, V, Z Axis Travel	mm	120x120x260
Max. size of work piece	mm	850x550x255
Max. work piece weight	kg	600
Max. X, Y Rapid Traverse	mm/min	Max. 800
Axis Drive System	axis	AC Servo Motor
Wire Diameter Range(Standard)	mm	Φ0.15-0.3(Φ0.25)
Max. Wire Feed Rate	mm/sec	300
Wire Tension	gf	300-2500
Taper Angle	-	±21°/140mm (Wide Angle Nozzle DA+DB=15mm)
Outside Dimension(WxDxH)	mm	2900x2600x2220
Machine Weight	kg	4900+900
