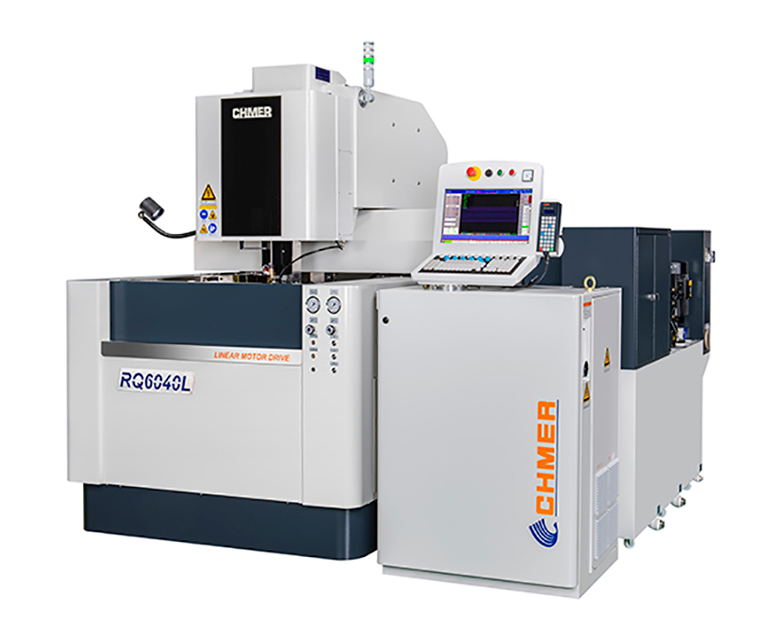

RQ6040L

Wire Cut EDM

Unprecedented rigid gantry structure shows unparalleled rigidity and stability. Combined with UX1 made-in-house linear motors, excellent AWT, and new i8+ power supply, the RQ series delivers high precision and high performance by hardware as well as by software. Connecting with you at any time, the RQ series is your top choice.

Technical data

X, Y, Z Axis Travel

U, V Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

600x400x300mm

100x100mm

910x600x300mm

1000kg

2700x2800x2450mm

4000kg

Download PDF Inquiry CHMER

Specification

Specification Accessories

Model	Unit	RQ6040L
X, Y Axis Travel	mm	600x400
U, V, Z Axis Travel	mm	100x100x300
Max. size of Work piece	mm	910x600x300 910x600x150
Max. work piece weight	kg	1000
X Y Feed Rate	mm/min	Max. 1800
Axis Drive System	-	XY-Linear Motor UVZ-AC Servo Motor
Wire Diameter Range(Standard)	mm	φ0.15-0.3 (φ0.25)
Max. Wire Feed Rate	mm/sec	300
Wire Tension	gf	300-2500
Taper Angle	-	±21°/100 (wide-angled nozzle, DA+DB=15mm)
Outside Dimension(WxDxH)	mm	2700x2800x2450
Machine Weight	kg	4000
Tank Capacity	kg	1250

Standard

PAPER FILTER X2PCS
TFT X 1SET
FLUSHING NOZZLES X 2PCS
DIAMOND GUIDES(0.26MM) X 2PCS
ENERGIZING CARBIDES X 2PCS
DIAMOND GUIDE REMOVE JIG X 1SET
BRASS WIRE(DIA.0.25MMX5KG)
TOOLS X 1SET
WATER CHILLER X 1SET
AC /DC POWER X 1SET
OV CIRCUIT X 1SET
ION EXCHANGE RESINS (3PCSX5L)
