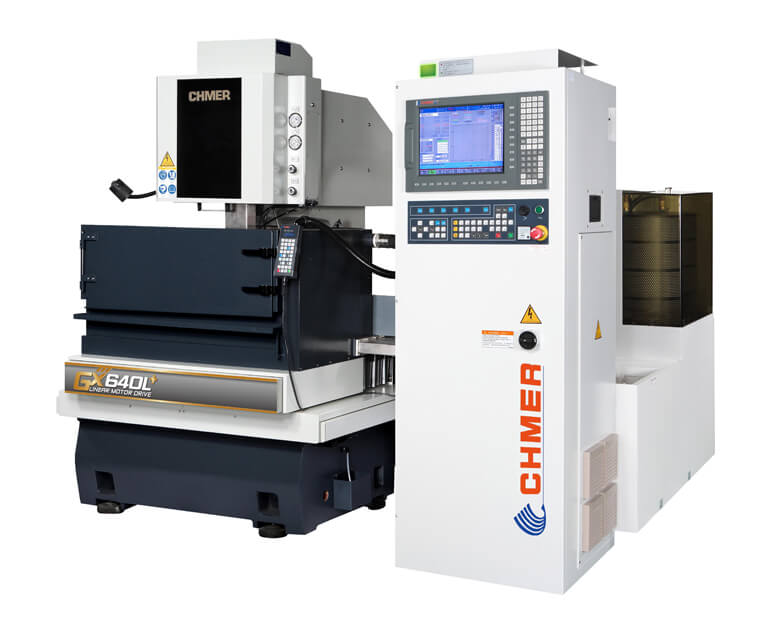

GX640L+

Wire Cut EDM

1.Highly efficient In-House Linear Motor drive system.

2.First energy-saving Generation AWT.

3.Inverter type water chiller.

Technical data

X, Y, Z Axis Travel

U, V Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

600x400x300mm

100x100mm

910x700x295mm

600kg

2800x2450x2250mm

3800kg

Download PDF Inquiry CHMER

Specification

Model	Unit	GX640L+ SUBMERGED
X, Y, Z Axis Travel	mm	600x400x300
U, V, Z Axis Travel	mm	100x100
Max. size of work piece	mm	910x700x295
Max. work piece weight	kg	600
X Y Feed Rate	mm/min	Max.1800
Axis Drive System	-	XY - Linear Motor UVZ - AC Servo Motor
Wire Diameter Range(Standard)	mm	¢0.15~0.3 (¢0.25)
Max. Wire Feed Rate	mm/sec	300, 11.8
Wire Tension	gf	300-2500
Taper Angle	-	±21°/100(wide-angled nozzle,DA+DB=15mm)
Machine Weight	kg	3800
Max. power consumption	-	3 Phase 220 ±10% 11kva
