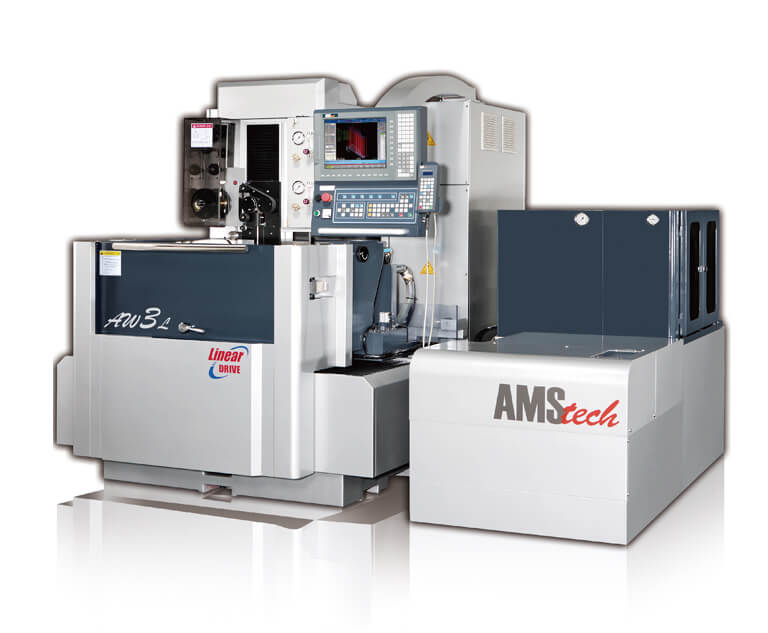

AW3L

Wire Cut EDM

Technical data

X, Y, Z Axis Travel

U, V Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

370x270x260mm

100x100mm

750x550x260mm

500kg

2350x2640x2050mm

4600+280kg

Download PDF Inquiry CHMER

Specification

Model	Unit	AW3L ( Drop door )
X, Y Axis Travel	mm	370x270
U, V, Z Axis Travel	mm	100x100x260
Max. size of work piece	mm	750x550x260
Max. work piece weight	kg	500
X Y Feed Rate	mm/min	Max. 1500
Axis Drive System	-	XY Linear Motor
Wire Diameter Range(Standard)	mm	¢ 0.1 ~ 0.3 ( ¢ 0.20 )
Max. Wire Feed Rate	mm/sec	300
Wire Tension	gf	200-2500
Taper Angle	-	± 21° / 110 mm ( width, DA + DB = 15 mm )
Outside Dimension(WxDxH)	mm	2350x2640x2050
Machine Weight	kg	4600+280
Water Capacity	L	700
