HM6050L
Download PDF Inquiry CHMER

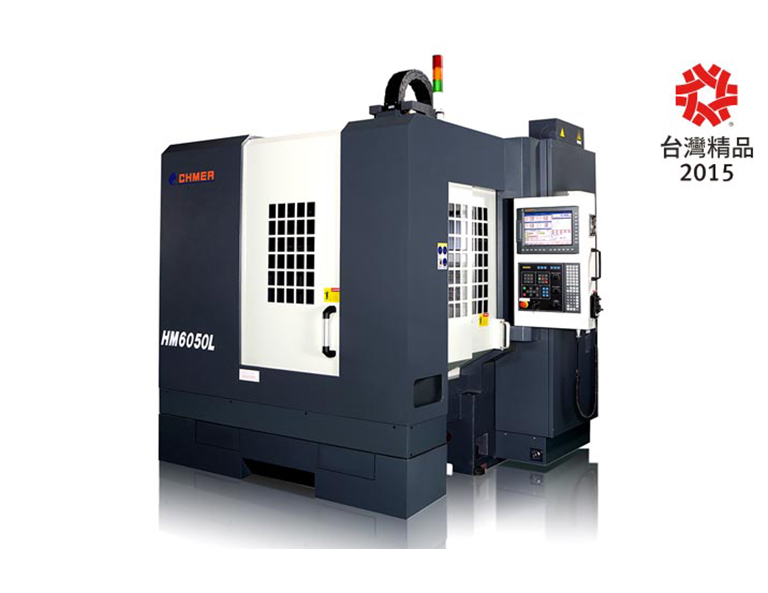

HM6050L

High Speed Milling Machine

  • New optimized gantry structure design
  • In house Linear Motor Drive
  • Constant Temperature Unit
  • Spindle Temperature Compensation Function
  • 5 Axis CNC Controller
  • Graphite Cutting Unit

Technical data

X, Y, Z Axis Travel
Max. Work Piece Weight
Outside Dimension (WxDxH)
Machine Weight
500x620x300mm
300kg
2600x2600x2470mm
3900kg
Download PDF Inquiry CHMER

Specification

Specification

Specification

Model Unit HM6050L
Spindle speed (Max.) RPM 8000-30000
Spindle taper - HSK E40
Spindle motor (S1/S6) KW 10/11.5
Woking Table Size mm 550x650
T-slot mm 14x5x100
Max. Load of table kg 300
Travel (XxYxZ) mm 500x620x300
Dist. from table surface to spindle nose mm 220-520
Work feed M/min 10
X. Y. Z axis servo motor (Max.) - X,Y,Z axis Linear Motor
Outside Dimension (WxDxH) mm 2600x2600x2470
Net Weight kg 3900
