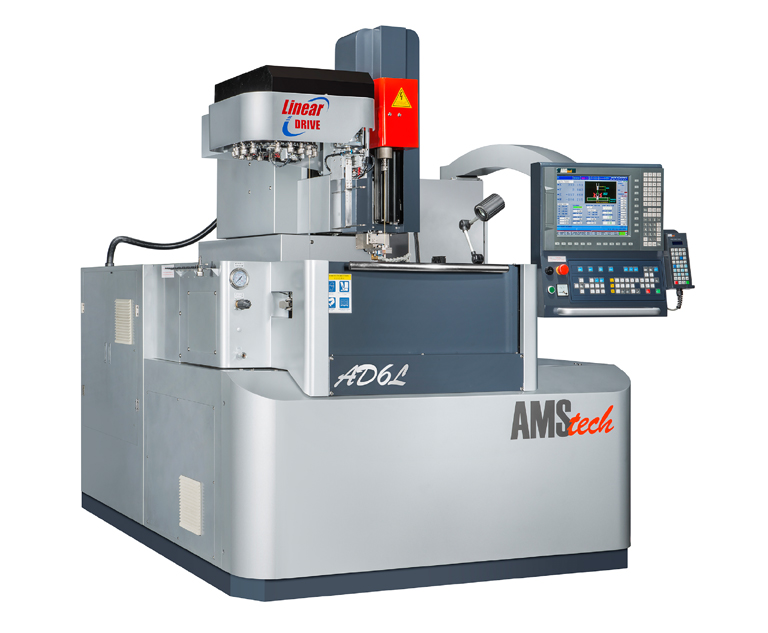

AD6L

Drilling EDM

Technical data

X, Y Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

600x400mm

1000x800x360mm

1200kg

2350x3100x2300mm

3200kg

Download PDF Inquiry CHMER

Specification

Model	Unit	AD6L
Work Table Size	mm	790x500
X and Y Travel	mm/inch	600x400/23.6x15.7
Max. Workpiece Size	mm/inch	1000x800x360/39.3x31.5x14.2
Max. Workpiece Weight	kg/lb	1200/2646
Z Servo Axis Travel	mm/inch	350/13.8
W Axis Travel	mm/inch	500/19.7
A Axis	Degree	-(optional)
A Axis Payload Weight	kg	-
B Axis	Degree	-(optional)
Automatic Electrode Exchange	pcs	10 or 20(optional)
Automatic Mask Exchange	pcs	5 (optional)
Electrode Dia.	mm	¢ 0.2 ~ ¢ 3.0/¢ 0.008 ~ 0.12
Electrode Max. Length	mm/inch	400/15.7
Electrode End to Work Table	mm/inch	30 ~ 380/1.2 ~ 15
Processing Liquid	l/g	600/159
Processing Liquid Kind	-	Water
Overall Size	mm/inch	2350x3100x2300/92.5x122x90.6
Net Weight	kg/lb	3200/7055
