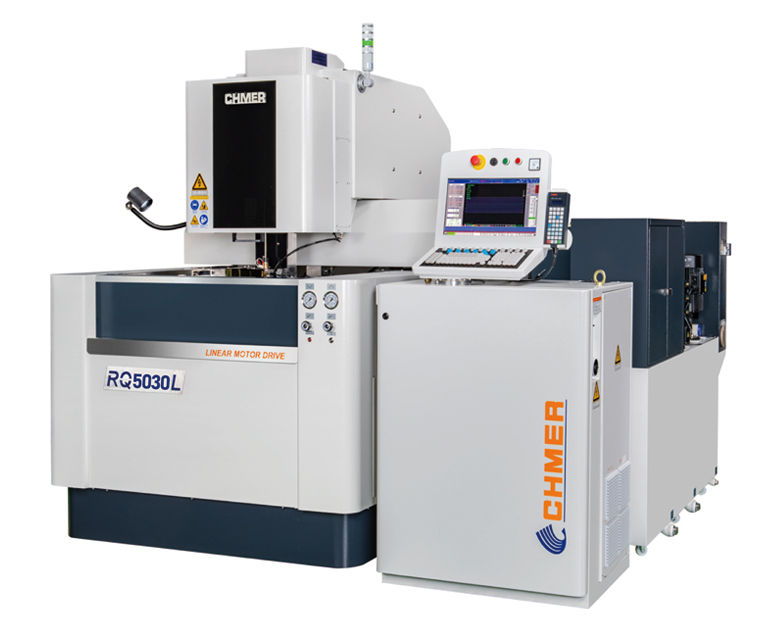

RQ5030L

Wire Cut EDM

Unprecedented rigid gantry structure shows unparalleled rigidity and stability. Combined with UX1 made-in-house linear motors, excellent AWT, and new i8+ power supply, the RQ series delivers high precision and high performance by hardware as well as by software. Connecting with you at any time, the RQ series is your top choice.

Technical data

X, Y Axis Travel

U, V, Z Axis Travel

Max. Size of Workpiece

Max. Work Piece Weight

Outside Dimension (WxDxH)

Machine Weight

500x300mm

60x60x200mm

850x500x200mm

600kg

2500x2650x2250mm

3000kg

Download PDF Inquiry CHMER

Specification

Specification Accessories

Model	Unit	RQ5030L
X, Y Axis Travel	mm	500x300
U, V, Z Axis Travel	mm	60x60x200
Max. size of Work piece	mm	850x500x200 850x500x145
Max. work piece weight	kg	600
X Y Feed Rate	mm/min	Max. 1800
Axis Drive System	-	XY-Linear Motor UVZ-AC Servo Motor
Wire Diameter Range(Standard)	mm	φ0.15-0.3 (φ0.25)
Max. Wire Feed Rate	mm/sec	300
Wire Tension	gf	300-2500
Taper Angle	-	±14.5°/80 (wide-angled nozzle, DA+DB=15mm)
Outside Dimension(WxDxH)	mm	2500x2650x2250
Machine Weight	kg	3000
Tank Capacity	kg	930

RQ5030L

Standard

PAPER FILTER X2PCS
TFT X 1SET
FLUSHING NOZZLES X 2PCS
DIAMOND GUIDES(0.26MM) X 2PCS
ENERGIZING CARBIDES X 2PCS
DIAMOND GUIDE REMOVE JIG X 1SET
BRASS WIRE(DIA.0.25MMX5KG)
TOOLS X 1SET
WATER CHILLER X 1SET
AC /DC POWER X 1SET
OV CIRCUIT X 1SET
ION EXCHANGE RESINS (3PCSX5L)
